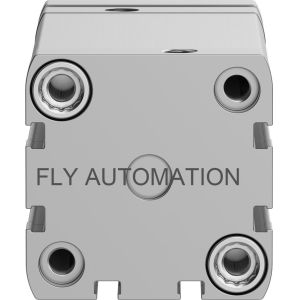

GTIN4052568198923 Compact Pneumatic Air Cylinders ADNGF-50-80-P-A 554267

Ask Lasest Price
Brand Name :	FESTO
Model Number :	ADNGF-50-80-P-A
Price :	EXW USD70-90
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	80 pcs per month
Delivery Time :	10-15working days

Add to Cart

Product Details
Company Profile

GTIN4052568198923 Compact Pneumatic Air Cylinders ADNGF-50-80-P-A 554267

FESTO Compact cylinder ADNGF-50-80-P-A 554267 GTIN4052568198923 Pneumatic Air Cylinders

Advantage

1.Long service life.

2.Space saving.

3.Complete range.

4.Guaranteed quality.

Technical Data

Stroke	80 mm
Piston diameter	50 mm
Based on standard	ISO 21287
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Protection against torque/guide	Guide rod with yoke
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	687 g
Additional weight per 10 mm stroke	64 g
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Aluminium Anodised
Material seals	TPE-U(PUR)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy Smooth anodised

Other size as below

Type	Order no	Weight(g)	Price
ADNGF-50-5-P-A	554258	719	USD70-90
ADNGF-50-10-P-A	554259	751	USD70-90
ADNGF-50-15-P-A	554260	783	USD70-90
ADNGF-50-20-P-A	554261	815	USD70-90
ADNGF-50-25-P-A	554262	847	USD70-90
ADNGF-50-30-P-A	554263	879	USD70-90
ADNGF-50-40-P-A	554264	943	USD70-90
ADNGF-50-50-P-A	554265	1007	USD70-90
ADNGF-50-60-P-A	554266	1071	USD70-90
ADNGF-50-80-P-A	554267	1199	USD70-90

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Weight [g]

FESTO, the world's leading automation technology supplier, is committed to promoting the development of industrial automation.

A wide range of products with excellent prices. Please hurry to me!
