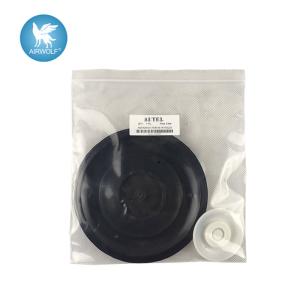

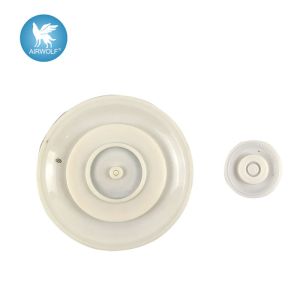

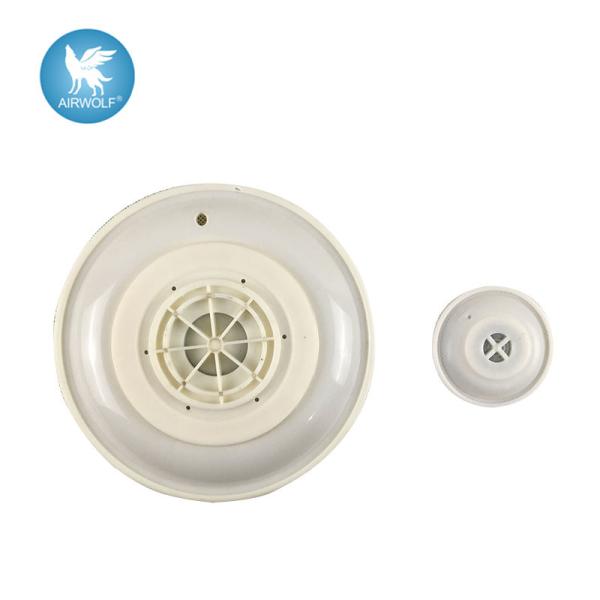

Autel M/D75 pulse valve Diaphragm AE1475I10 AE1475I12 with SS
spring Membrane
Specification:
1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1475I10 AE1475I12 AE2475I10 AE2475I12 AE1475P AE2475P
2. This repair kit has large air - outlet , so the air can get
throgh very smoothly.
3. We use high quality material , the collection equipment
efficiency can be improved , the energy loss also can be reduced.
4. Autel M/D75 repair kit has unique geometric diaphragm design , high speed from multiple
diaphragm to reach the highest peak in an instant.
5. Its lifespan is about 1 million cycles.
6. Material:Plastic
7. Color:gray
Carateristiche
|
Uscita | Pipe 3" |
Pressione di Esercizio | 1,5-8 bar |
Range Temperatura Standard | -40 °C ; +100 °C |
Range Alta Temperatura | -20 °C ; +200 °C |
Peso | 11kg |
Grado di protezione (standard) | IP65 |
Drawings:
Introduction
Electromagnetic pulse valve refers to the gas through the valve in
instantaneous once a electrical signal received. Just like pulse
phenomena, it has the change of the short fluctuation. Therefore it
is calls the pulse valve. The Industry standard definition of
electromagnetic pulse valve for electromagnetic pilot valve and
pulse valve together, diaphragm valve controlled by electrical
signals.
Working principle
Electrical pulse controller send input signals so that the
electromagnetic armature attracts the moving bar. Unclose the
balancing hole to release the pressure gas in the back cavity of
diaphragm quickly; the pressure gas in the front cavity holds up
the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works
immediately to resume the moving bar so as to close the balancing
hole. The pressure gas in the back cavity of the diaphragm and the
spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow
when the moving bar of armature holds up for balancing and to
transit the air to the back cavity as soon as the balancing hole is
shut to close the passage and stop cleaning.
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) 1 year warranty |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL
will be normal ways. If you require use of a courier, we can do it.
After-sale Service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item
defective in 3 Month, We will offer replacement without extra
Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We
will contact suppliers or Manufactory for Warranty. Buyers Might
Need to pay the Shipping fee For resend the replaced item.
Serves time
0:00 - 23:59
From Monday to Sunday
