Alstom Optipow 105 3 Inch Piston Type Pulse Valve V1617803 V3630501 V1585320

Ask Lasest Price
Brand Name :	ALSTOM
Model Number :	OPTIPOW 105
Certification :	ISO Standand
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram Paypal
Supply Ability :	500 PCS Per Week
Delivery Time :	7 working Days

Add to Cart

Product Details
Company Profile

Alstom Optipow 105 3 Inch Piston Type Pulse Valve V1617803 V3630501 V1585320

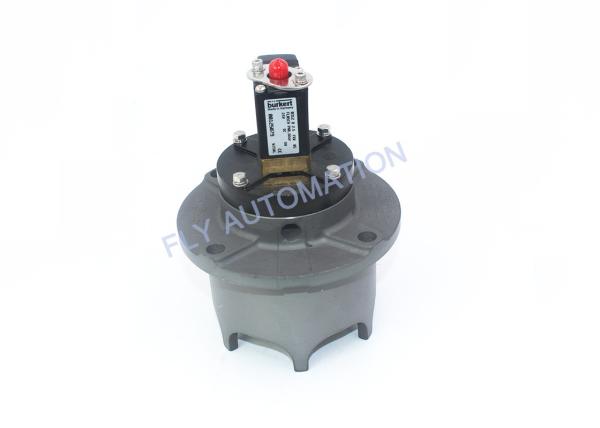

ALSTOM OPTIPOW 105 3 Inch Compact Piston Type Pulse Valve V1617803 V3630501 V1585320

OPTIPOW? 105 ; MAIN PARTS

Design data : Design static pressure 15 bar (1500 kPa)

Design temperature 100 °C

Normal operating pressure < 6 bar

Normal operating pressure variation 3 bar unlimited nos

Normal operation temperature 50 °C

Pos 1, valve house, is die-casted in material SS 4250 (equal to DIN 1725

GD-AlSi9Cu3). After machining, the house for maximal wearing resistance

and low friction is hard-anodised including a PTFE-treatment. The house is

bolted to the pressure tank with four bolts M10. For sealing between

pressure tank and ambient there is an O-ring at the outside of the valve

house.

Pos 2, pilot cover, is die-casted in material SS 4250 (equal to DIN 1725

GD-AlSi9Cu3). The cover is fixed to the house with four bolts M5x30mm.

For sealing there is an O-ring between the cover and the pilot membrane.

Pos 3, rubber disc, is made from Urethane-rubber and acts as a damper for the

forces from the plunge that is transferred into the house but do also reduce

the deceleration forces on the plunge. The rubber disc is pressed into the

bottom of the valve house.

Pos 4, plunge, is injection moulded in glass-fibre reinforced polyamide material PA

6.6, acid resistant and withstanding gas temperatures up to 150°C. The

outside diameter as well as the sealing part of the bottom is machined.

Pos 5, pilot membrane, is made of rubber from a standard membrane quality.

Pos 6, solenoid valve, is a 3-way valve.

At non energised valve the pilot air is connected to the volume above

membrane (pressurised).

At energised valve the volume above membrane is connected to ambient

(evacuated) via the slot in the pilot cover.

As standard the solenoid valve is delivered for 24 V DC.
