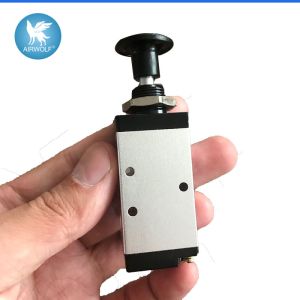

4L Series 5/2 Way Push Pull Air Control Valve 4L210-08 4L110-06 4L310-08

Ask Lasest Price
Brand Name :	AIRWOLF
Model Number :	4L210-08
Certification :	CE
Price :	Negotiation
Payment Terms :	Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :	2000 pieces per 10 working days
Delivery Time :	1-7 work days

Add to Cart

Product Details
Company Profile

4L Series 5/2 Way Push Pull Air Control Valve 4L210-08 4L110-06 4L310-08

4L Series Push-pull valve (5/2way) Control Valve 4L210-08 4L110-06 4L310-08

Model	4L110-06 (4R110-06)	4L210-06 (4R210-06)	4L210-08 (4R210-08)	4L310-08 (4R310-08)	4L310-10 (4R310-10)
Fluid	Air (to be filtered by 40μm filter element)
Operating	Manual control direct acting type
Port Size	1/8''		1/4''		3/8''
Orifice Size (Cv)	10.2mm² (Cv=0.6)	4L210-08: 17.0mm² (Cv=1.0)		4L310-10: 28.0mm² (Cv=1.65)
Valve Type	5/2 Way
Pressure Range	0 to 1.0MPa (0 to 145 psi)
Proof Pressure	1.5 MPa (215 psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Serves time
0:00 - 23:59
From Monday to Sunday

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
