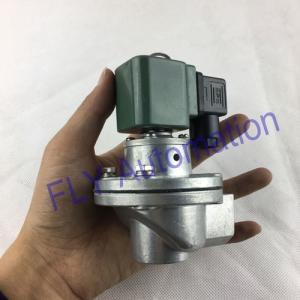

BFEC DMF-Z-20 Pulse Jet Valves 3/4" DN20 DMF Type Pneumatic Pulse Valve

Ask Lasest Price
Brand Name :	BFEC
Model Number :	DMF-Z-20
Certification :	CE
Price :	Negotiation
Payment Terms :	T/T , Western Union
Supply Ability :	1000 pcs
Delivery Time :	within 1-30 working days after payment

Add to Cart

Product Details
Company Profile

BFEC DMF-Z-20 Pulse Jet Valves 3/4" DN20 DMF Type Pneumatic Pulse Valve

DMF-Z-20 Pulse Jet Valves 3/4" DN20 DMF Type pneumatic pulse valve

Features

1.Model: DMF-Z-20

2.Port size:3/4"

3.Specially designed for reverse jet-type dust collector systems

4.High flow Cv(s) to 140 for effective bag cleaning

5.High cycle life

6.Fast opening/closing

Specification

DMF-Z-20
Center hole distance	Φ80
Kv/Cv	17.55/20.48
Blowing area(m²)	3.5-6
Air inlet/Outlet size	G3/4" G3/4"
Weight(kg)	0.65

Fluids	Filtered
Diaphragm	NBR: -20~120 ℃
	fluororubber: -30~180 ℃
	Nitrile: -40~120 ℃
Pressure range	From 0.5 to 7.5 bar
Cover	Die-cast aluminium
Body	Die-cast aluminium
Pilot Base	Brass (Chromed)
Pilot	Stainless Steel
Diaphragm	NBR
Bolts and screws	Stainless Steel
Diaphragm Backing disk	Stainless Steel
Diaphragm spring	Stainless Steel

Drawings

Details Show

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Competitive Advantage

Our product features	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) Registration support.
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

The exhaust chamber volume of improved DMF pulse valve is increased. The permeability magnetic material of pulse valve is increased, and also, the materials of structure of diaphragm and pressure spring are improved, so that the exhaust volume of valve is increased to raise the magnetic strength and sensitivity as well as the element reliability and operation stability of pulse valve. Its service life will be greatly prolonged.
