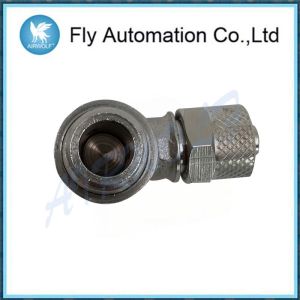

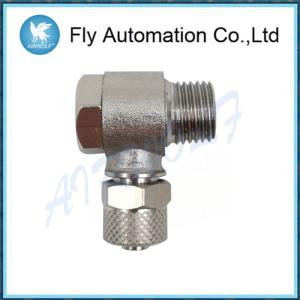

CAMOZZI Swivel Male Elbow Sprint Nickel-plated Brass1525 6/4-1/8
Series Pneumatic Tube Fittings
| DIMENSIONS |
| Mod. | Tube | A | C1 | H | L | S | M | R | W | SW | SW1 | Weight(g) |
| 1525 6/4-1/8 | 6/4 | G1/8 | 3 | 6 | 31 | 12.5 | 24 | 16.5 | Ø14 | 14 | 12 | 35 |
| 1525 6/4-1/4 | 6/4 | G1/4 | 3 | 8 | 33.5 | 12.5 | 26 | 18.5 | Ø18 | 17 | 12 | 48 |
| 1525 6/4-3/8 | 6/4 | G3/8 | 3 | 8 | 34 | 12.5 | 28 | 20.5 | Ø21 | 19 | 12 | 60 |
| 1525 8/6-1/8 | 8/6 | G1/8 | 5 | 6 | 31 | 12.5 | 24 | 16.5 | Ø14 | 14 | 14 | 35 |
| 1525 8/6-1/4 | 8/6 | G1/4 | 5 | 8 | 33.5 | 12.5 | 26 | 18.5 | Ø18 | 17 | 14 | 54 |
| 1525 8/6-3/8 | 8/6 | G3/8 | 5 | 8 | 34 | 12.5 | 28 | 20.5 | Ø21 | 19 | 14 | 64 |
| 1525 10/8-1/8 | 10/8 | G1/8 | 6.5 | 6 | 31 | 12.5 | 25 | 16.5 | Ø14 | 14 | 16 | 38 |
| 1525 10/8-1/4 | 10/8 | G1/4 | 6.5 | 8 | 33.5 | 12.5 | 27 | 18.5 | Ø18 | 17 | 16 | 57 |
| 1525 10/8-3/8 | 10/8 | G3/8 | 6.5 | 8 | 34 | 12.5 | 29.5 | 21 | Ø21 | 19 | 16 | 69 |
| 1525 10/8-1/2 | 10/8 | G1/2 | 6.58 | 9 | 35 | 12.5 | 32 | 23.54 | Ø26 | 27 | 16 | 112 |
| 1525 12/10-3/8 | 12/10 | G3/8 | 8.5 | 8 | 34 | 12.5 | 31.5 | 21.5 | Ø21 | 19 | 19 | 77 |
| 1525 12/10-1/2 | 12/10 | G1/2 | 8 | 9 | 35 | 12.5 | 33.5 | 23.54 | Ø26 | 27 | 19 | 111 |
| 1525 15/12,5-1/2 | 15/12,5 | G1/2 | 11 | 9 | 35 | 12.5 | 36.5 | 25 | Ø26 | 27 | 22 | 120 |
